Hikvision DS-D6022FN-B Digital Signage Display

Description

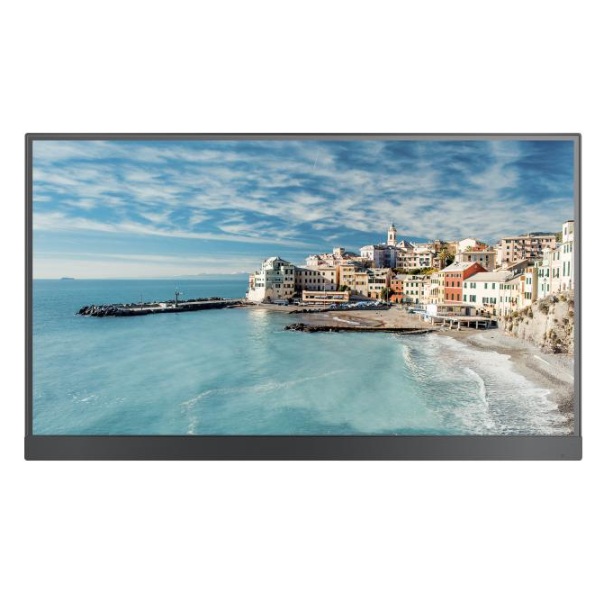

Hikvision DS-D6022FN-B Digital Signage Display

The Hikvision DS-D6022FN-B Digital Signage display is a compact 21.5-inch commercial display designed for professional indoor signage. It combines Full HD resolution with an integrated Android platform and network connectivity.

Its compact size makes it suitable for applications where a smaller digital signage screen is required. It can be used for information displays, promotional content, menus, announcements and other targeted signage applications.

Key Features

• 21.5-inch Full HD display
• 1920 × 1080 resolution at 60 Hz
• 250 cd/m² brightness
• 3000:1 contrast ratio
• 178° horizontal and vertical viewing angles
• 8-bit colour depth with 16.7 million colours
• Android 8.1 operating system
• 2 GB RAM and 16 GB built-in storage
• 7 × 24-hour reliability
• Built-in dual 5 W speakers
• LAN and Wi-Fi connectivity
• 2 × USB 2.0 ports
• TF card slot
• Bluetooth 4.0
• Wall-mounted design

Compact Full HD Digital Signage

The Hikvision DS-D6022FN-B Digital Signage display features a 21.5-inch screen with 1920 × 1080 Full HD resolution. This provides sufficient detail for text, images, advertisements and video content on a compact display.

The ELED backlight provides consistent screen illumination. It also offers a 3000:1 contrast ratio and 72% NTSC colour gamut.

The 178° horizontal and vertical viewing angles help maintain visibility when the display is viewed from different positions.

Designed for Continuous Operation

The DS-D6022FN-B is rated for 7 × 24-hour operation. This makes it suitable for signage applications where the screen needs to remain operational throughout the day and night.

Its compact format also allows digital signage to be deployed in locations where a larger commercial display would be impractical.

Built-In Android Platform

The Hikvision DS-D6022FN-B Digital Signage display uses an integrated Android 8.1 operating system. It is powered by a quad-core Cortex-A17 processor running at 1.6 GHz.

The system includes 2 GB of memory and 16 GB of built-in storage.

This integrated platform allows the display to handle compatible digital signage content without requiring a separate computer for basic playback.

Flexible Digital Signage Content

The display supports a variety of multimedia formats. These include video, audio and image files for use in digital signage programmes.

Content can be managed using scheduled playback. Hikvision’s signage platform supports daily, weekly, looped and customised playback schedules. It can also support centralised management of multiple displays.

This makes the display suitable for information points, promotional messaging and other applications where content needs to be updated regularly.

Network Connectivity

The DS-D6022FN-B includes a LAN connection and integrated Wi-Fi for network connectivity. It also provides two USB 2.0 ports and a TF card slot for content and data access.

Bluetooth 4.0 is also supported. Audio input and output connections provide additional flexibility for installations requiring external audio equipment.

Built-In Audio

Two integrated 5 W speakers provide audio directly from the display. An audio input and audio output are also available for connecting compatible external audio equipment.

This allows the display to reproduce promotional videos, announcements and other signage content with accompanying audio.

Slim Wall-Mounted Design

The Hikvision DS-D6022FN-B Digital Signage display uses a wall-mounted design with a compact chassis.

The manufacturer lists dimensions of approximately 516.75 × 320.03 × 46.55 mm without the wall-mounted backboard. With the backboard installed, the depth is approximately 53.55 mm.

Its compact 3.03 kg net weight also makes it practical for installations where space and mounting requirements are more limited.

Hikvision DS-D6022FN-B for Digital Signage

The Hikvision DS-D6022FN-B Digital Signage display provides a compact solution for professional indoor signage. Its 21.5-inch Full HD screen, integrated Android platform, network connectivity and 7 × 24-hour reliability make it suitable for a range of commercial applications.

It is particularly useful where targeted information or promotional content needs to be displayed on a smaller screen. Potential applications include retail information, reception areas, menus, announcements and other indoor signage installations.

Please note: Hikvision currently lists the DS-D6022FN-B as a discontinued model.
