Hikvision DS-D6043UN-DL Digital Signage Display

Description

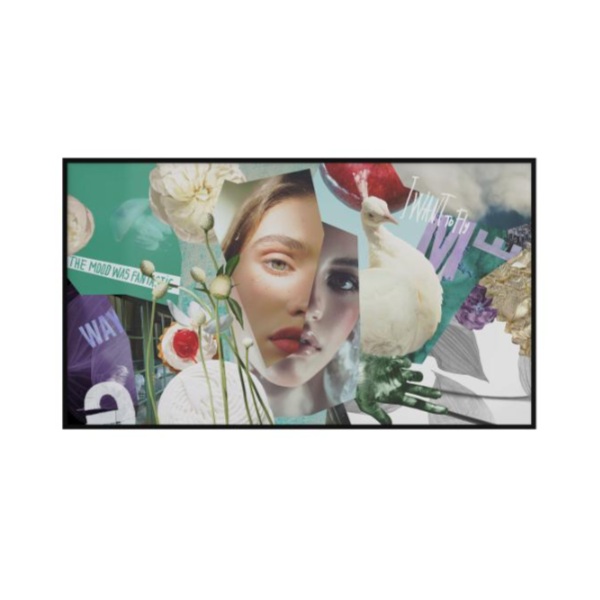

Hikvision DS-D6043UN-DL Digital Signage Display

The Hikvision DS-D6043UN-DL Digital Signage display is a 43-inch commercial display designed for professional indoor signage. It combines 4K UHD resolution with 500 cd/m² brightness and an integrated Android 13 platform.

Its slim design supports both landscape and portrait wall mounting. Therefore, it can suit retail stores, reception areas, hospitality venues, corporate spaces and other commercial signage applications.

Key Features

• 43-inch 4K UHD display with 3840 × 2160 resolution
• 500 cd/m² brightness
• 4000:1 contrast ratio
• 10-bit colour depth with 85% NTSC colour gamut
• Android 13 operating system
• 4 GB RAM and 32 GB eMMC storage
• 7 × 24-hour reliability for continuous operation
• 3 × HDMI 2.0 inputs and 1 × DisplayPort 1.2 input
• Gigabit RJ45 network connection
• Dual-band 2.4 GHz and 5 GHz Wi-Fi
• RS232 input and output for professional control
• USB 2.0 and USB 3.0 connectivity
• Bluetooth 5.4
• Built-in 2 × 10 W speakers
• Landscape or portrait wall mounting

4K Digital Signage for Commercial Environments

The Hikvision DS-D6043UN-DL Digital Signage display provides a 43-inch screen with 3840 × 2160 4K UHD resolution. This produces detailed images for advertising, promotional material, information and video content.

The display provides 500 cd/m² brightness and a 4000:1 contrast ratio. It also features 10-bit colour depth and an 85% NTSC colour gamut.

Its 178° horizontal and vertical viewing angles help maintain clear visibility from different positions. The 25% haze surface also helps manage reflections in indoor environments.

Designed for Continuous Operation

The DS-D6043UN-DL has a 7 × 24-hour reliability rating. As a result, it is designed for signage installations that need to operate throughout the day and night.

The display uses a D-LED backlight and has a 60 Hz refresh rate. Its 8 ms response time supports smooth playback of typical digital signage content.

Built-In Android Platform

The Hikvision DS-D6043UN-DL Digital Signage display runs Android 13 using a quad-core Cortex-A55 processor with a 1.92 GHz main frequency.

It includes 4 GB of memory and 32 GB of built-in eMMC storage. The integrated platform supports local playback of compatible multimedia content.

Supported video formats include AV1, H.265, H.264/AVC, MVC, VP9, AVS2, MPEG4, MPEG2, MPEG1, VP8, MJPEG and H.263.

Flexible Digital Signage Content

The display supports a wide range of static and dynamic materials. These include pictures, audio, video, scrolling subtitles, PDF documents, webpages, live video, number calling and pop-up pictures.

Flexible programme scheduling allows content to play by day, week, loop or customised schedule. Multiple materials can also be arranged into different playback areas.

Centralised management allows administrators to remotely control and manage one or more screens. Functions include scheduled startup and shutdown, brightness and volume adjustments, screenshot previews and remote programme updates.

Professional Connectivity

The Hikvision DS-D6043UN-DL provides 3 HDMI 2.0 inputs and 1 DisplayPort 1.2 input for computers, media players and other external sources.

It also includes one USB 2.0 port and one USB 3.0 port. Network connectivity is provided through RJ45 Ethernet and dual-band 2.4 GHz and 5 GHz Wi-Fi.

RS232 input and output provide additional options for professional control and system integration. Bluetooth 5.4 is also supported.

Secure Content Management

The DS-D6043UN-DL includes multiple security measures for professional digital signage deployments.

Hikvision specifies three-level checking for materials, programmes and schedules. This helps reduce the risk of incorrect content being released. Data stored on the device and transmitted across the network can also be encrypted.

The platform uses an activation process rather than a default password. This allows the administrator to establish the initial password during setup.

Slim Wall-Mounted Design

The Hikvision DS-D6043UN-DL Digital Signage display supports both landscape and portrait wall mounting. This provides flexibility when designing signage layouts for different locations.

Landscape orientation works well for advertising, promotional videos and general information. Portrait orientation can suit menus, directories, announcements and vertically formatted advertising.

The display measures 967.4 × 555.9 × 70 mm without the wall-mounted backboard. With the backboard installed, the overall depth is 100 mm. It has a net weight of 8 kg.

Built-In Audio

Two integrated 10 W speakers provide audio directly from the display. A line-out connection is also available for installations requiring an external audio system.

This allows the display to handle promotional videos, announcements and other signage content where audio forms part of the presentation.

Hikvision DS-D6043UN-DL for Digital Signage

With its 43-inch 4K UHD display, 500 cd/m² brightness, Android 13 platform and 7 × 24-hour reliability, the Hikvision DS-D6043UN-DL Digital Signage display provides a versatile professional signage solution.

It is well suited to retail, hospitality, corporate, reception and information-display applications. Its integrated Android platform, flexible content management, multiple inputs and network connectivity make it adaptable to a wide range of commercial installations.
