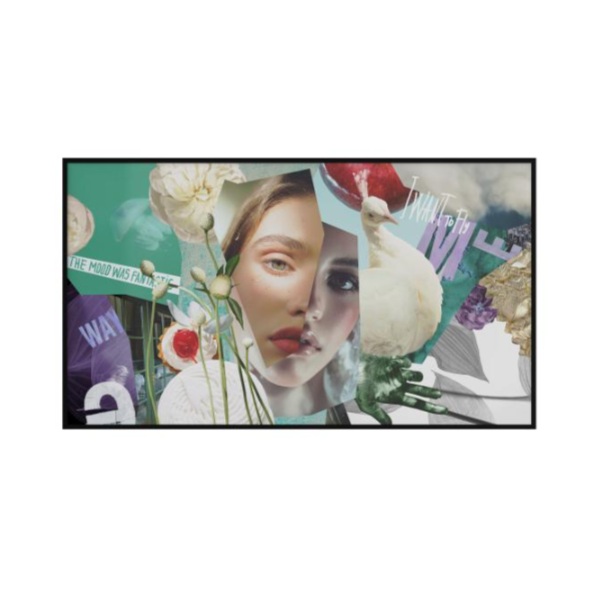

Hikvision DS-D6050UN-DL Digital Signage Display

Description

Hikvision DS-D6050UN-DL Digital Signage Display

The Hikvision DS-D6050UN-DL Digital Signage display is a 50-inch commercial display designed for professional indoor signage. It combines 4K UHD resolution with 500 cd/m² brightness, an integrated Android 13 platform and flexible network connectivity.

Its slim wall-mounted design supports both horizontal and vertical installation. This makes it suitable for retail, hospitality, corporate, reception and information-display environments.

Key Features

• 50-inch 4K UHD display
• 3840 × 2160 resolution
• 500 cd/m² brightness
• 1200:1 contrast ratio
• 10-bit colour depth with 85% NTSC colour gamut
• 178° horizontal and vertical viewing angles
• Android 13 operating system
• 4 GB RAM and 32 GB eMMC storage
• 7 × 24-hour reliability
• 3 × HDMI 2.0 inputs
• 1 × DisplayPort 1.2 input
• Gigabit Ethernet and dual-band Wi-Fi
• RS232 input and output
• USB 2.0 and USB 3.0
• Bluetooth 5.4
• Built-in 2 × 10 W speakers
• Landscape and portrait wall mounting

4K UHD Digital Signage

The Hikvision DS-D6050UN-DL Digital Signage display features a 50-inch 4K UHD panel with a resolution of 3840 × 2160. This provides detailed images for advertising, promotional content, information and video playback.

The display delivers 500 cd/m² brightness and a 1200:1 contrast ratio. It also uses 10-bit colour depth and provides an 85% NTSC colour gamut.

A 178° horizontal and vertical viewing angle helps maintain visibility when content is viewed from different positions.

The 25% haze surface helps reduce reflections while maintaining clear images in indoor commercial environments.

Designed for 24/7 Operation

The DS-D6050UN-DL has a 7 × 24-hour reliability rating. It is therefore designed for signage applications that require continuous operation.

The D-LED backlight provides consistent illumination across the display. A 60 Hz refresh rate supports smooth playback of standard digital signage content.

Integrated Android Platform

The Hikvision DS-D6050UN-DL Digital Signage display uses an integrated Android 13 operating system.

Processing is handled by a quad-core Cortex-A55 processor running at 1.92 GHz. The system includes 4 GB of memory and 32 GB of eMMC storage.

This integrated platform allows compatible signage content to be played directly from the display without necessarily requiring a separate external media player.

Flexible Content Management

The display supports a range of digital signage materials. These include pictures, audio, video, scrolling subtitles, PDF documents, webpages, live video, number calling and pop-up pictures.

Content can be arranged into different programmes and playback areas. Scheduling can be configured by day, week, loop or custom schedule.

Centralised management also allows administrators to manage one or multiple displays remotely. Functions include scheduled startup and shutdown, brightness and volume adjustment, screenshot previews and remote programme updates.

Multiple Connectivity Options

The Hikvision DS-D6050UN-DL Digital Signage display provides three HDMI 2.0 inputs and one DisplayPort 1.2 input.

These connections allow computers, media players and other external sources to be connected directly to the display.

For network connectivity, the display includes a 100/1000 Mbps Ethernet port and dual-band Wi-Fi supporting 2.4 GHz and 5 GHz networks.

USB 2.0 and USB 3.0 ports provide additional options for local content and peripherals. Bluetooth 5.4 is also supported.

RS232 input and output provide wired control options for professional installations.

Built-In Audio

Two integrated 10 W speakers provide audio directly from the display. A line-out connection is also available for connection to an external audio system.

This allows the display to reproduce promotional videos, announcements and other signage content with accompanying audio.

Landscape or Portrait Installation

The DS-D6050UN-DL supports wall mounting in both horizontal and vertical orientations. This provides greater flexibility when designing digital signage layouts.

Landscape orientation is well suited to promotional videos, advertising and general information. Portrait installation can be useful for menus, directories, announcements and vertically formatted content.

The display measures 1124.6 × 644.8 × 68.5 mm without the wall-mounted backboard. With the backboard installed, the depth is 98.5 mm. Net weight is 10.4 kg.

Professional Digital Signage Security

Hikvision provides several security features for professional signage deployments.

The system uses multi-level checking for materials, programmes and schedules. This helps reduce the risk of incorrect content being released.

Hikvision also specifies encryption for data stored on the device and transmitted across the network. The display does not use a default password. Instead, the administrator activates the device and establishes the initial password during setup.

Hikvision DS-D6050UN-DL for Commercial Digital Signage

With its 50-inch 4K UHD display, 500 cd/m² brightness and integrated Android 13 platform, the Hikvision DS-D6050UN-DL Digital Signage display provides a flexible solution for professional signage.

Its 7 × 24-hour reliability, network connectivity, multiple video inputs and centralised management features make it suitable for retail, hospitality, corporate and information-display applications.

The ability to install the display in either landscape or portrait orientation further expands its installation flexibility.
