Hikvision DS-D6065UN-DP Digital Signage Display

Description

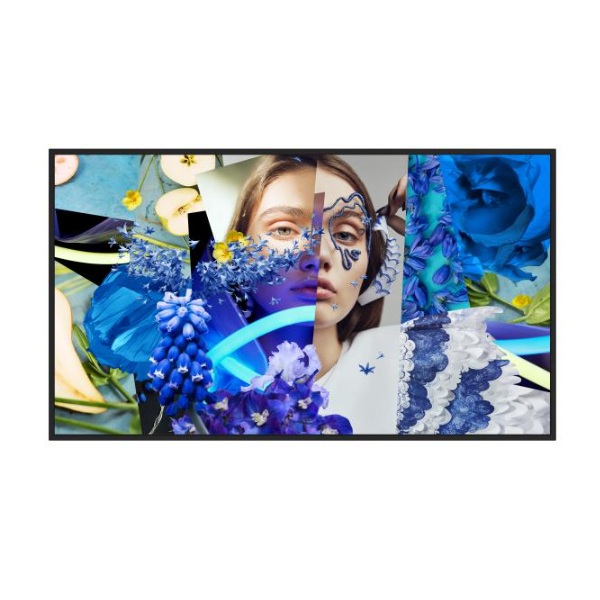

Hikvision DS-D6065UN-DP Digital Signage Display

The Hikvision DS-D6065UN-DP Digital Signage display provides a 65-inch 4K UHD screen for professional commercial environments. With 500 cd/m² brightness, 10-bit colour depth and an 85% NTSC colour gamut, it delivers clear and detailed content.

Its slim design supports wall mounting in either landscape or portrait orientation. Therefore, it can suit retail stores, reception areas, hospitality venues, corporate spaces and other commercial signage applications.

Key Features

• 65-inch 4K UHD display with 3840 × 2160 resolution
• 500 cd/m² brightness for clear commercial signage
• 5000:1 contrast ratio and 10-bit colour depth
• 85% NTSC colour gamut
• Android 13 operating system
• 4 GB RAM and 32 GB eMMC storage
• 7 × 24-hour reliability for continuous operation
• 3 × HDMI and 1 × DisplayPort inputs
• Gigabit Ethernet and dual-band Wi-Fi
• RS232 input and output for professional control
• Built-in 2 × 10 W speakers
• Landscape or portrait wall mounting

4K Digital Signage for Commercial Environments

The Hikvision DS-D6065UN-DP Digital Signage display combines a 65-inch screen with 3840 × 2160 4K UHD resolution. This provides sharp detail for advertising, promotional material, information and video content.

The display produces 500 cd/m² brightness and a 5000:1 contrast ratio. Its 178° horizontal and vertical viewing angles also help maintain clear visibility from different positions.

The E-LED backlight provides consistent illumination, while the 25% haze surface helps manage reflections. The 60 Hz refresh rate also supports smooth playback of video content.

Designed for Continuous Operation

The DS-D6065UN-DP has a specified 7 × 24-hour reliability rating. As a result, it is designed for digital signage installations that need to operate throughout the day and night.

The display also has a slim chassis. Without the wall-mounted backboard, it measures 1459.2 × 837.1 × 38.9 mm. With the backboard fitted, the depth increases to 68.9 mm.

Built-In Android Platform

The Hikvision DS-D6065UN-DP Digital Signage display runs Android 13 using a quad-core Cortex-A55 processor with a 1.92 GHz main frequency. It includes 4 GB of memory and 32 GB of eMMC storage.

This integrated platform allows the display to handle compatible media content without necessarily requiring a separate external media player. Supported formats include a range of common video, audio and image files.

Flexible Content Management

The display supports different types of digital signage content, including images, video, audio, scrolling subtitles, PDF files, webpages and live video.

Content can also be organised into schedules. Programmes can be arranged according to daily, weekly, looped or customised playback requirements. Centralised management further allows administrators to manage displays remotely.

This makes the DS-D6065UN-DP suitable for organisations operating multiple signage screens across retail, hospitality, corporate or public environments.

Professional Connectivity

The Hikvision DS-D6065UN-DP provides 3 HDMI inputs and 1 DisplayPort input for connecting computers, media players and other external sources. It also includes USB 2.0 and USB 3.0 connectivity.

For networked installations, the display provides RJ45 Ethernet and dual-band Wi-Fi supporting 2.4 GHz and 5 GHz networks. RS232 input and output are also available for professional control and integration.

Bluetooth 5.0 provides additional wireless connectivity for compatible devices.

Slim Wall-Mounted Design

The Hikvision DS-D6065UN-DP Digital Signage display supports both landscape and portrait wall mounting. This provides greater flexibility when designing commercial signage installations.

Landscape orientation works well for advertising, promotional videos and information displays. Portrait orientation can suit menus, directories, announcements and vertically formatted advertising.

The slim 38.9 mm display depth without the wall-mounted backboard also helps the screen sit close to the wall. With the backboard installed, the overall depth is 68.9 mm.

Built-In Audio

Two integrated 10 W speakers provide audio directly from the display. A line-out connection is also available for installations requiring an external audio system.

Therefore, the display can handle promotional videos, announcements and other signage content where audio forms part of the presentation.

Hikvision DS-D6065UN-DP for Digital Signage

With its 65-inch 4K UHD display, Android 13 platform, network connectivity and 7 × 24-hour reliability, the Hikvision DS-D6065UN-DP Digital Signage display provides a versatile solution for professional indoor signage.

It is well suited to retail, hospitality, corporate, reception and information-display applications. Its multiple inputs, integrated media platform and flexible mounting options make it adaptable to a wide range of commercial installations.
