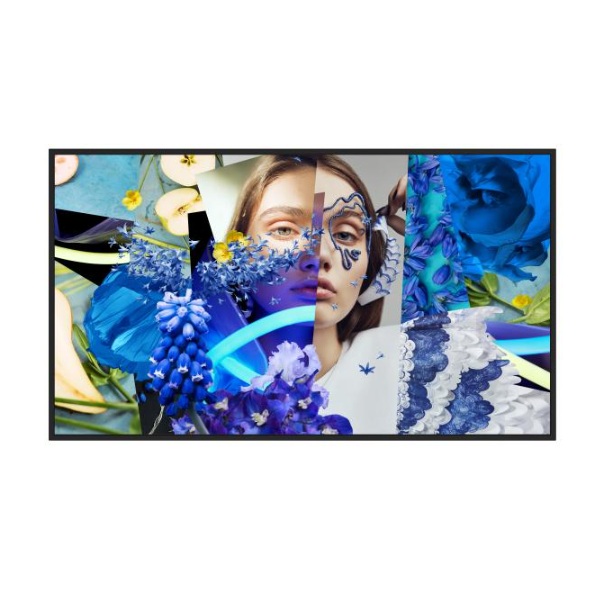

Hikvision DS-D6050UH-DP Digital Signage Display

Description

Hikvision DS-D6050UH-DP Digital Signage Display

The Hikvision DS-D6050UH-DP Digital Signage display combines a 50-inch 4K UHD screen with 700 cd/m² high brightness. It is designed for professional indoor signage where clear, vibrant content and reliable operation are important.

The display features an integrated Android 13 platform, network connectivity and flexible content management. It also supports landscape or portrait wall mounting, making it suitable for retail, hospitality, corporate and information-display applications.

Key Features

• 50-inch 4K UHD display with 3840 × 2160 resolution
• High 700 cd/m² brightness for clear commercial signage
• 1200:1 contrast ratio and 10-bit colour depth
• 85% NTSC colour gamut
• Android 13 operating system
• 4 GB RAM and 32 GB eMMC storage
• 7 × 24-hour reliability for continuous operation
• 3 × HDMI and 1 × DisplayPort inputs
• RJ45 Ethernet and dual-band Wi-Fi
• RS232 input and output for professional control
• Built-in 2 × 10 W speakers
• Landscape or portrait wall mounting

High-Brightness 4K Digital Signage

The Hikvision DS-D6050UH-DP Digital Signage display provides a 50-inch screen with 3840 × 2160 4K UHD resolution. This delivers detailed images for advertising, promotional material, information and video content.

Its 700 cd/m² brightness makes the display particularly suitable for commercial environments that require strong screen visibility. The display also provides a 1200:1 contrast ratio, 10-bit colour depth and 85% NTSC colour gamut.

Furthermore, the 178° horizontal and vertical viewing angles help maintain consistent visibility across a wide viewing area. The 25% haze surface also helps reduce reflections.

Designed for Continuous Operation

The DS-D6050UH-DP is rated for 7 × 24-hour operation. Therefore, it can support signage installations that need to remain active throughout the day and night.

The display uses an E-LED backlight and has an 8 ms response time. Its 60 Hz refresh rate also provides smooth playback for typical digital signage content.

Built-In Android Platform

The Hikvision DS-D6050UH-DP Digital Signage display runs Android 13 using a quad-core Cortex-A55 processor with a main frequency of 1.92 GHz. It includes 4 GB of memory and 32 GB of eMMC storage.

The integrated platform supports local playback of compatible multimedia content. Supported video formats include AV1, H.265, H.264, MVC, VP9, AVS2, MPEG4, MPEG2, MPEG1, VP8, MJPEG and H.263.

Audio formats include MPEG, APE, FLAC, AAC, OGG, AIF, AIFF, ALAW and ALAC.

Flexible Content Management

The display supports a variety of static and dynamic materials. These include pictures, audio, video, scrolling subtitles, PDF documents, webpages, live video and other digital signage content.

Flexible scheduling allows content to play according to daily, weekly, looped or customised schedules. This makes it easier to manage different campaigns or information across a signage network.

Centralised management also allows administrators to control one or multiple displays remotely. Functions include scheduled startup and shutdown, brightness and volume adjustments, screenshot previews and remote programme updates.

Professional Connectivity

The Hikvision DS-D6050UH-DP provides 3 HDMI inputs and 1 DisplayPort input for computers, media players and other external sources. It also includes one USB 2.0 and one USB 3.0 port.

For networked installations, the display provides an RJ45 Ethernet connection and dual-band Wi-Fi supporting 2.4 GHz and 5 GHz networks. RS232 input and output are also available for professional control.

Bluetooth 5.0 provides additional wireless connectivity for compatible devices.

Slim Wall-Mounted Design

The Hikvision DS-D6050UH-DP Digital Signage display supports both landscape and portrait wall mounting. This gives installers greater flexibility when positioning the screen for different signage applications.

Landscape orientation works well for advertising, promotional videos and general information. Meanwhile, portrait orientation can suit menus, directories, announcements and vertically formatted advertising.

The display measures 1125.8 × 646.8 × 41 mm without the wall-mounted backboard. With the backboard installed, the overall depth is 71 mm.

The relatively slim chassis allows the display to sit close to the wall while maintaining a clean professional appearance.

Built-In Audio

Two integrated 10 W speakers provide audio directly from the display. A line-out connection is also available for installations that require an external audio system.

This allows the display to handle promotional videos, announcements and other signage content where audio forms part of the presentation.

Hikvision DS-D6050UH-DP for Digital Signage

With its 50-inch 4K UHD display, 700 cd/m² brightness, Android 13 platform and 7 × 24-hour reliability, the Hikvision DS-D6050UH-DP Digital Signage display provides a versatile professional signage solution.

It is well suited to retail, hospitality, corporate, reception and information-display applications. Its high brightness, integrated Android platform, multiple inputs and flexible mounting options make it adaptable to a wide range of commercial installations.
