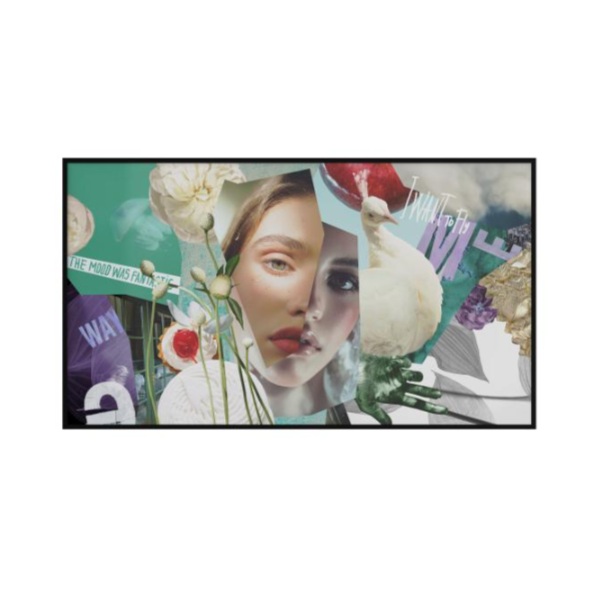

Hikvision DS-D6065UN-DL Digital Signage Display

Description

Hikvision DS-D6065UN-DL Digital Signage Display

The Hikvision DS-D6065UN-DL Digital Signage display is a 65-inch commercial display designed for professional indoor signage. It combines 4K UHD resolution with 500 cd/m² brightness and an integrated Android 13 platform.

The display provides a large, detailed canvas for advertising, promotional content, information and video. It supports both horizontal and vertical wall mounting for flexible installation.

Key Features

• 65-inch 4K UHD display
• 3840 × 2160 resolution
• 500 cd/m² brightness
• 4000:1 contrast ratio
• 10-bit colour depth with 85% NTSC colour gamut
• 178° horizontal and vertical viewing angles
• Android 13 operating system
• 4 GB RAM and 32 GB eMMC storage
• 7 × 24-hour reliability
• 3 × HDMI 2.0 inputs with HDCP 2.2
• 1 × DisplayPort 1.2 input
• Gigabit Ethernet and dual-band Wi-Fi
• RS232 input and output
• USB 2.0 and USB 3.0
• Bluetooth 5.4
• Built-in 2 × 10 W speakers
• Landscape and portrait wall mounting

4K UHD Digital Signage

The Hikvision DS-D6065UN-DL Digital Signage display features a 65-inch screen with 3840 × 2160 4K UHD resolution. This provides detailed images for advertising, promotional material, information and video content.

The display provides 500 cd/m² brightness and a 4000:1 contrast ratio. It also uses 10-bit colour depth and an 85% NTSC colour gamut.

A 178° horizontal and vertical viewing angle helps maintain visibility from different viewing positions. The 25% haze surface also helps reduce reflections in indoor environments.

Designed for Continuous Operation

The DS-D6065UN-DL is rated for 7 × 24-hour operation. This makes it suitable for commercial signage installations that need to remain operational throughout the day and night.

The D-LED backlight provides consistent illumination. A 60 Hz refresh rate supports smooth playback of standard digital signage content.

Integrated Android 13 Platform

The Hikvision DS-D6065UN-DL Digital Signage display uses an integrated Android 13 operating system. It is powered by a quad-core Cortex-A55 processor with a 1.92 GHz main frequency.

The system includes 4 GB of memory and 32 GB of built-in eMMC storage. This integrated platform allows compatible signage content to be played directly from the display.

The display supports a broad range of video and audio formats. This includes modern formats such as AV1 and H.265, alongside commonly used H.264, MPEG and VP9 formats.

Flexible Digital Signage Content

The display supports static and dynamic signage materials. These include pictures, audio, video, scrolling subtitles, PDF documents, webpages, live video, number calling and pop-up pictures.

Content can be arranged into different programmes and playback areas. Scheduling can be configured by day, week, loop or custom schedule.

Centralised management allows administrators to remotely manage one or multiple displays. Functions include scheduled startup and shutdown, brightness and volume adjustments, screenshot previews and remote programme updates.

Professional Connectivity

The Hikvision DS-D6065UN-DL Digital Signage display provides three HDMI 2.0 inputs and one DisplayPort 1.2 input. The HDMI inputs support HDCP 2.2.

These connections allow computers, media players and other external sources to connect directly to the display.

Network connectivity includes one RJ45 port and dual-band 2.4 GHz and 5 GHz Wi-Fi. RS232 input and output provide additional options for professional control and system integration.

The display also provides one USB 2.0 port and one USB 3.0 port. Bluetooth 5.4 is available for compatible wireless devices.

Built-In Audio

Two integrated 10 W speakers provide audio directly from the display. A line-out connection is also available for installations requiring an external audio system.

This allows promotional videos, announcements and other signage content to include accompanying audio without necessarily requiring separate speakers.

Landscape or Portrait Installation

The DS-D6065UN-DL supports wall mounting in both horizontal and vertical orientations. This provides greater flexibility when designing digital signage layouts.

Landscape orientation works well for advertising, promotional videos and general information. Portrait orientation can be useful for menus, directories, announcements and vertically formatted advertising.

The display measures 1457.7 × 832.4 × 68.8 mm without the wall-mounted backboard. With the backboard installed, the depth is 88.8 mm. Its net weight is 17.7 kg.

Centralised Signage Management

The Hikvision DS-D6065UN-DL Digital Signage display supports centralised management of one or multiple screens.

Administrators can remotely manage scheduled startup and shutdown, brightness, volume, programme distribution and local USB programme updates.

Five-level organisation permissions are also available. This allows administrators to manage materials, programmes, terminals and users according to assigned permissions.

Security Features

The DS-D6065UN-DL includes several security measures for professional digital signage deployments.

Hikvision specifies three-level checking of materials, programmes and schedules. This helps reduce the risk of incorrect content being released.

Data encryption is also used for stored and transmitted data. The display does not use a default password. Instead, users activate the device and establish the initial password during setup.

Hikvision DS-D6065UN-DL for Commercial Digital Signage

With its 65-inch 4K UHD display, 500 cd/m² brightness, Android 13 platform and 7 × 24-hour reliability, the Hikvision DS-D6065UN-DL Digital Signage display provides a versatile professional signage solution.

Its large screen is well suited to retail advertising, hospitality, corporate communications and information displays. Integrated content management, multiple video inputs and network connectivity provide flexibility for professional installations.

Support for both landscape and portrait wall mounting also allows the display to be positioned according to the requirements of the installation.
