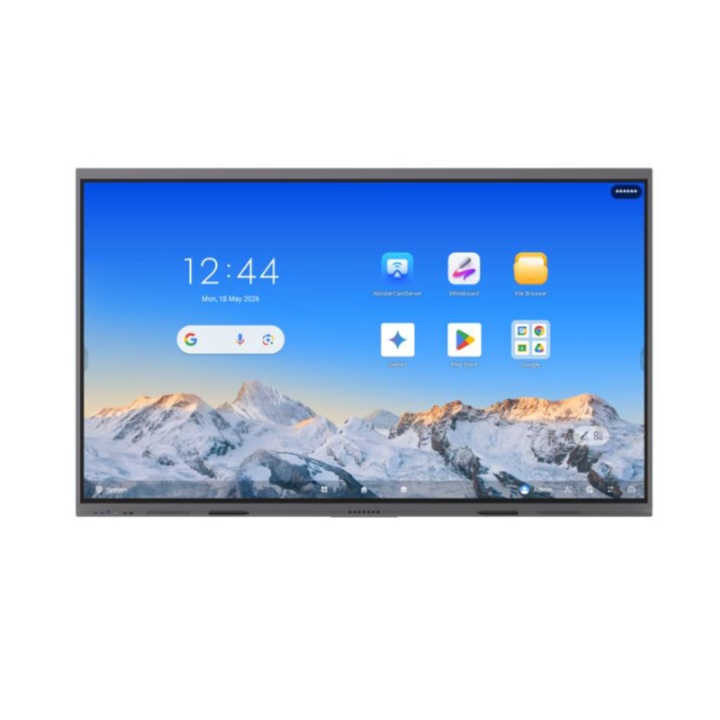

Hikvision DS-D5C98RB/A2L Interactive Display
Description
The Hikvision DS-D5C98RB/A2L Interactive Display is a large-format 98-inch collaboration display designed for lecture theatres, large classrooms, training centres and executive boardrooms. With a 4K Ultra HD screen, Google EDLA certification and Android 13, it provides a powerful platform for interactive presentations, digital learning and professional collaboration.
The ultra-large display area allows content to be viewed clearly from a distance, while advanced touch technology and built-in conferencing features create an all-in-one solution for modern communication environments.
Key Features
- 98 Inch 4K Ultra HD (3840 × 2160) display
- Google EDLA Certified with Android 13
- Up to 50-point infrared multi-touch
- Integrated AI camera with auto framing
- 8-array microphone system with AI noise reduction
- Wi-Fi 6 and Bluetooth connectivity
- 8 GB RAM and 128 GB internal storage
- HDMI 2.1, USB-C, OPS expansion and dual Gigabit LAN
- Built-in 2 × 20 W speakers
- Anti-glare tempered glass with zero bonding technology
Designed for Large Classrooms and Boardrooms
The Hikvision DS-D5C98RB/A2L Interactive Display is ideal for environments where visibility and collaboration are critical. The 98-inch screen provides a highly immersive viewing experience, making it suitable for universities, corporate training facilities, conference rooms and large meeting spaces.
With Google EDLA certification, users can securely access Google applications such as Google Drive, Google Meet, Google Classroom and the Google Play Store. This simplifies workflows by allowing teams and educators to work directly from the display.
Immersive 98 Inch 4K UHD Display
The large 4K Ultra HD panel delivers detailed images, sharp text and vibrant colours across the entire screen. This makes presentations, videos, diagrams and interactive lessons easier to view from the back of larger rooms.
The anti-glare tempered glass surface helps minimise reflections, while zero bonding technology improves touch accuracy and creates a more natural writing experience. The 50-point infrared touch system also supports multiple users interacting with content at the same time.
Hikvision DS-D5C98RB/A2L Interactive Display Performance
The display combines Android 13 with an octa-core processor, 8 GB RAM and 128 GB internal storage to provide smooth daily performance. Users can launch applications quickly, switch between tasks and access cloud-based resources without unnecessary delays.
Furthermore, Google EDLA certification provides a secure Android platform with access to Google’s productivity ecosystem and ongoing software support.
Intelligent Video Conferencing Features
The integrated AI camera supports intelligent framing to keep presenters visible during meetings and lessons. Meanwhile, the 8-array microphone system captures voices clearly using advanced audio processing features, including noise reduction, echo cancellation and beamforming.
The built-in 2 × 20 W speakers provide clear audio playback for meetings, presentations and educational content without requiring additional speakers in many installations.
Flexible Connectivity for Professional Installations
The Hikvision DS-D5C98RB/A2L supports a wide range of connection options, including HDMI 2.1, USB, USB-C, dual Gigabit LAN, Wi-Fi 6, Bluetooth and OPS expansion. This flexibility allows the display to integrate easily into existing classroom, boardroom and conferencing setups.
The USB-C port simplifies connectivity by supporting video, touch control, data transfer and charging through a single cable.
Reliable Technology for Education and Business
Built for professional environments, the display features durable anti-glare glass, zero bonding technology and a robust commercial design. These features help maintain reliable performance during daily use in demanding environments.
Whether installed in a university lecture hall, corporate boardroom or large training facility, the Hikvision DS-D5C98RB/A2L Interactive Display delivers a future-ready collaboration experience with a massive 98-inch 4K display, intelligent conferencing tools and professional connectivity.
| Display | |
|---|---|
| Display Size | 98″ |
| Display Technology | DLED LED Backlight |
| Panel Type | IPS / VA / ADS |
| Native Resolution | 3840 × 2160 (4K UHD) @ 60Hz |
| Brightness | 600 cd/m² (Typical) |
| Contrast Ratio | 1200:1 / 4000:1 / 5000:1 (Panel Dependent) |
| Colour Depth | 10-bit |
| Display Colours | 1.07 Billion Colours |
| Colour Gamut | 72% NTSC (CIE1931) |
| Response Time | 5 ms |
| Refresh Rate | 60 Hz |
| Aspect Ratio | 16:9 |
| Viewing Angle | 178° Horizontal / 178° Vertical |
| Pixel Pitch | 0.164 × 0.493 mm |
| Active Display Area | 2158.85 × 1214.35 mm |
| Surface Glass | Anti-Glare & Anti-Fingerprint Glass |
| Glass Bonding | Zero Lamination |
| Surface Haze | 25% |
| Surface Hardness | 9H Pencil Hardness (7 Mohs) |
| Light Transmittance | 88% ±3% |
| Panel Lifespan | 50,000 Hours |
| Recommended Operating Time | 7 × 16 Hours |
| Touch Technology | |
| Touch Technology | Infrared Multi-Touch |
| Touch Points | Up to 50 Simultaneous Touch Points |
| Touch Response Time | ≤2 ms |
| Touch Accuracy | ±0.5 mm |
| Minimum Object Size | ≥1.5 mm |
| Touch Resolution | 32768 × 32768 |
| Android System | |
| Operating System | Android 14 |
| Processor | Quad-core Cortex-A76 (2.4 GHz) + Quad-core Cortex-A55 (1.8 GHz) |
| Graphics Processor | Mali-G610 MC4 GPU |
| AI Processor | 6 TOPS NPU |
| Memory (RAM) | 8 GB + Up to 16 GB Virtual RAM |
| Internal Storage | 128 GB |
| HDCP Support | HDCP 2.3 / 2.0 / 1.4 |
| Audio & Smart Features | |
| Built-in Speakers | 2 × 20 W + 25 W Subwoofer |
| Bluetooth | Bluetooth 5.4 (BLE) |
| Wi-Fi | Wi-Fi 6 (2.4GHz / 5GHz) |
| NFC | Built-in NFC Card Reader (13.56 MHz, ISO 14443A/B & ISO 15693) |
| Light Sensor | Yes |
| Environmental Sensor | Temperature & Humidity Sensor (Humidity Accuracy ±1.5% RH, Temperature Accuracy ±0.1°C) |
| Supported Languages | 39+ Languages Including English, French, German, Spanish, Portuguese, Japanese, Korean, Arabic and more. |
| AI & Collaboration Features | |
| AI Features | AI Assistant, AI Identify, AI Notes (1 Year / 6000 Minutes Included) |
| Whiteboard | Built-in Whiteboard with Handwriting Recognition, Shape Recognition and Document Insertion |
| Wireless Screen Sharing | WonderCast (Up to 9 Devices) |
| Connectivity | |
| HDMI 2.1 Inputs | 3 (1 Front, 2 Rear) |
| HDMI 2.1 Output | 1 Rear |
| VGA Input | 1 Rear |
| Audio Input | 1 Rear |
| Audio Output | 1 Rear |
| SPDIF Output | 1 Rear |
| USB 3.0 Ports | 4 (2 Front, 2 Rear) |
| USB 2.0 Ports | 1 Rear |
| USB Type-C Ports | 2 (1 Front, 1 Rear, 100W Charging + DisplayPort Input) |
| Touch USB Ports | 3 (1 × USB 3.0 Front, 2 × USB 2.0 Rear) |
| Gigabit LAN Ports | 2 Rear |
| RS-232 Control Port | 1 Rear |
| Power | |
| Power Supply | 100–240V AC, 50/60Hz |
| Average Power Consumption | <325 W |
| Standby Power Consumption | ≤0.5 W |
| Environmental | |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Physical Specifications | |
| VESA Mount | 1000 × 400 mm |
| Dimensions (Without Wall Mount) | 2219.8 × 1341.35 × 104.61 mm |
| Dimensions (With Wall Mount) | 2219.8 × 1341.85 × 128.3 mm |
| Packaging Dimensions | 2525 × 1700 × 325 mm |
| Net Weight | 99.6 kg |
| Shipping Weight | 140 kg |
| Included Accessories | |
| Included Accessories | Wall Mount Bracket, Mounting Hooks, Touch Pen, Remote Control, 3 m USB Touch Cable, 3.5 m HDMI Cable (2.0), 3 m Power Cable, User Manual, Packing List, Cleaning Cloth |
