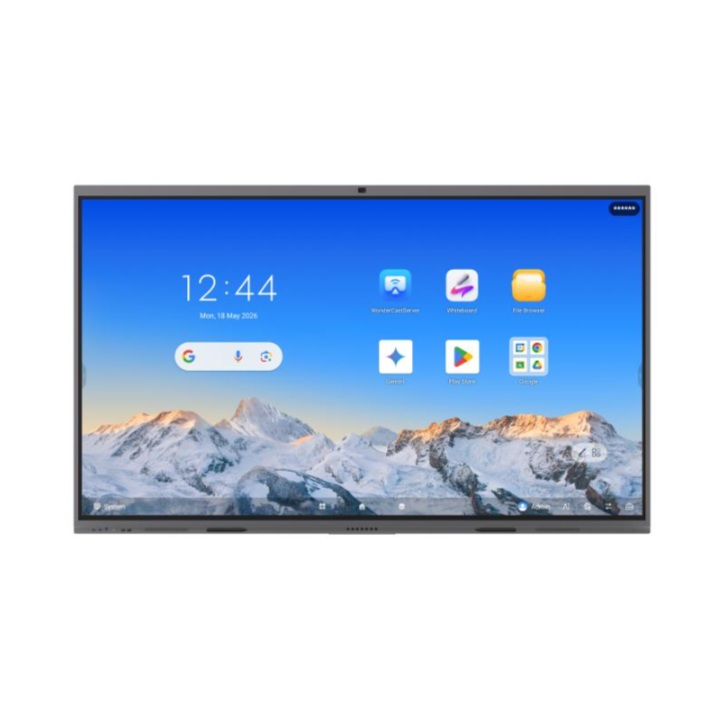

Hikvision DS-D5C98RB/B2L Interactive Display
Description
The Hikvision DS-D5C98RB/B2L Interactive Display is designed for large classrooms, lecture theatres, training centres and corporate boardrooms that require maximum screen size without compromising performance. Its expansive 98-inch 4K Ultra HD display, Google EDLA certification and Android 13 operating system provide a powerful platform for teaching, collaboration and professional presentations.
Whether you’re delivering interactive lessons, hosting video conferences or presenting detailed content, this display combines exceptional image quality with intuitive touch control and enterprise-grade connectivity.
Key Features
- 98 Inch 4K Ultra HD (3840 × 2160) display
- Google EDLA Certified with Android 13
- Up to 50-point infrared multi-touch
- Integrated AI camera with auto framing
- 8-array microphone system with intelligent noise reduction
- Wi-Fi 6 and Bluetooth connectivity
- 8 GB RAM and 128 GB internal storage
- HDMI 2.1, USB-C, OPS expansion and dual Gigabit LAN
- Built-in 2 × 20 W speakers
- Anti-glare tempered glass with zero bonding technology
Built for Large Learning and Collaboration Spaces
The Hikvision DS-D5C98RB/B2L Interactive Display provides an immersive collaboration experience for large groups. Google EDLA certification gives users secure access to Google Workspace applications, including Google Drive, Google Meet, Google Classroom and the Google Play Store.
As a result, educators can deliver engaging digital lessons, while businesses can simplify hybrid meetings and collaborative presentations from a single interactive display.
Brilliant 98 Inch 4K UHD Display
The large 98-inch 4K Ultra HD panel produces crisp text, detailed graphics and vibrant colours that remain visible throughout even the largest rooms. The anti-glare glass reduces reflections, while zero bonding technology improves touch accuracy and writing precision.
Furthermore, the responsive 50-point infrared touch system allows multiple users to write, annotate and collaborate simultaneously, creating an engaging digital whiteboard experience.
Hikvision DS-D5C98RB/B2L Interactive Display Performance
Powered by Android 13, an octa-core processor, 8 GB of RAM and 128 GB of internal storage, the display delivers fast performance throughout the working day. Applications open quickly, multitasking remains smooth and cloud-based collaboration feels responsive.
Additionally, Google EDLA certification ensures access to Google’s latest security updates and productivity applications, helping organisations protect their investment over time.
Professional Conferencing Technology
The integrated AI camera automatically frames presenters, while the built-in 8-array microphone system uses intelligent beamforming, echo cancellation and noise reduction to capture voices clearly across the room.
The built-in 2 × 20 W speaker system delivers clear audio for meetings, lessons and presentations without requiring external speakers in many installations.
Flexible Professional Connectivity
The Hikvision DS-D5C98RB/B2L supports HDMI 2.1, USB, USB-C, dual Gigabit LAN, Wi-Fi 6, Bluetooth and an OPS expansion slot for additional computing power. Consequently, integrating laptops, conferencing systems and classroom technology is simple.
The USB-C connection supports touch, data and charging through a single cable, reducing installation complexity and keeping meeting spaces organised.
Designed for Long-Term Commercial Reliability
Built for continuous use in demanding education and corporate environments, the display features durable anti-glare tempered glass, commercial-grade construction and advanced collaboration hardware. Its reliable performance makes it ideal for lecture halls, auditoriums, executive boardrooms and large training facilities.
The Hikvision DS-D5C98RB/B2L Interactive Display combines a massive 98-inch 4K display, Google EDLA certification and advanced collaboration tools to deliver a future-ready solution for organisations that need the very best in interactive communication.
| Display | |
|---|---|
| Diagonal Size | 98″ |
| Display Resolution | 4K UHD (3840 × 2160) @ 60 Hz |
| Backlight Technology | DLED |
| Panel Type | IPS |
| Brightness (Typical) | 600 cd/m² |
| Contrast Ratio | 1200:1 (Static), 30,000:1 (Dynamic) |
| Display Colours | 1.07 Billion |
| Colour Depth | 10-bit |
| Colour Gamut | 72% NTSC (CIE1931) |
| Pixel Pitch | 0.164 × 0.493 mm |
| Refresh Rate | 60 Hz |
| Response Time | 5 ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Aspect Ratio | 16:9 |
| Display Area | 2158.85 × 1214.35 mm |
| Surface Glass | Anti-Glare & Anti-Fingerprint Glass |
| Glass Bonding | Zero Lamination |
| Surface Haze | 25% |
| Surface Hardness | 9H (Pencil), Mohs Level 7 |
| Light Transmittance | 88% ±3% |
| Panel Lifespan | 50,000 Hours |
| Recommended Operating Time | 7 × 16 Hours |
| Touch Technology | |
| Touch Technology | Infrared Multi-Touch |
| Touch Points | Up to 50 |
| Touch Resolution | 32768 × 32768 |
| Touch Accuracy | ±0.5 mm (≥90% Touch Area) |
| Minimum Touch Object | ≥1.5 mm (≥90% Touch Area) |
| Touch Response Time | ≤2 ms |
| System | |
| Operating System | Android 14 |
| Processor | Octa-Core (4 × Cortex-A76 @ 2.4 GHz + 4 × Cortex-A55 @ 1.8 GHz) |
| Graphics Processor | Mali-G610 MC4 |
| Neural Processing Unit (NPU) | 6 TOPS |
| System Memory (RAM) | 8 GB + Up to 16 GB Virtual RAM |
| Internal Storage | 128 GB |
| HDCP Support | Versions 2.3, 2.0 & 1.4 |
| Camera | |
| Built-in Camera | Yes |
| Photo Resolution | 48 MP |
| Video Resolution | 8 MP |
| Maximum Camera Resolution | Up to 4K |
| Field of View | 93.4° Diagonal / 84.5° Horizontal / 54.1° Vertical |
| Lens Distortion | ≤2.5% |
| Camera Features | Automatic Switching Between Android, OPS & External PC |
| Image Processing | 3D Noise Reduction, Face Detection, Auto White Balance, Purple Edge Removal, Auto Defogging & Shadow Correction |
| Microphone | |
| Microphone Array | 8 Omni-directional Microphones |
| Pickup Distance | 12 m |
| Noise Reduction | Echo Reduction & Smart Noise Cancellation |
| Audio Processing | Dereverberation, Adaptive Noise Reduction, Adaptive Non-Stationary Noise Reduction, Echo Cancellation, Automatic Gain Control, Electrical Level Control, Beamforming, Speech Detection & Sound Source Localisation |
| Sampling Rate | 32 kHz |
| Bit Depth | 16-bit |
| Audio | |
| Speaker System | 2 × 20 W + 25 W Subwoofer |
| AI & Collaboration Features | |
| AI Functions | AI Assistant, AI Identify & AI Notes (1-Year / 6,000 Minutes Included) |
| Whiteboard | Built-in Whiteboard with Handwriting Recognition & Shape Recognition |
| Wireless Screen Sharing | WonderCast (Up to 9 Devices Simultaneously) |
| Features | |
| Bluetooth | Bluetooth 5.4 (BLE) |
| NFC | 13.56 MHz Card Reader (ISO14443 A/B & ISO15693) |
| Ambient Light Sensor | Yes |
| Humidity & Temperature Sensor | Built-in (±1.5% RH / ±0.1°C) |
| Connectivity | |
| HDMI 2.1 Inputs | 3 (1 Front, 2 Rear) |
| HDMI 2.1 Output | 1 (Rear) |
| VGA Input | 1 (Rear) |
| Audio Input | 1 (Rear) |
| Audio Output | 1 (Rear) |
| SPDIF Output | 1 (Rear) |
| USB 3.0 Ports | 4 (2 Front, 2 Rear) |
| USB 2.0 Ports | 1 (Rear) |
| USB Type-C Ports | 2 (1 Front, 1 Rear) |
| USB Type-C Features | USB 2.0, DisplayPort 1.2 Input & 100 W Charging |
| Touch USB Ports | 3 (1 Front USB 3.0, 2 Rear USB 2.0) |
| Ethernet Ports | 2 × Gigabit LAN (1000 Mbps) |
| Wi-Fi | Dual-Band Wi-Fi 6 (802.11ax) |
| Wi-Fi Modes | Access Point & Station |
| Bluetooth | Bluetooth 5.4 |
| RS-232 Port | 1 (Rear) |
| Power | |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Average Power Consumption | <325 W |
| Standby Power Consumption | ≤0.5 W |
| Physical | |
| Product Dimensions (Without Wall Mount) | 2219.8 × 1341.35 × 104.61 mm |
| Product Dimensions (With Wall Mount) | 2219.8 × 1341.85 × 128.3 mm |
| Package Dimensions | 2525 × 1700 × 325 mm |
| VESA Mount | 1000 × 400 mm (4 × M8 × 20 mm) |
| Net Weight | 100.6 ±0.5 kg |
| Gross Weight | 141 ±0.5 kg |
| Included in the Box | Wall Mount Bracket, Hooks, Touch Pen, Remote Control, 3 m Touch USB Cable, 3.5 m HDMI 2.0 Cable, 3 m Power Cable, Screen Cleaning Cloth, User Manual & Packing List |
| Environmental | |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10%–90% RH |
