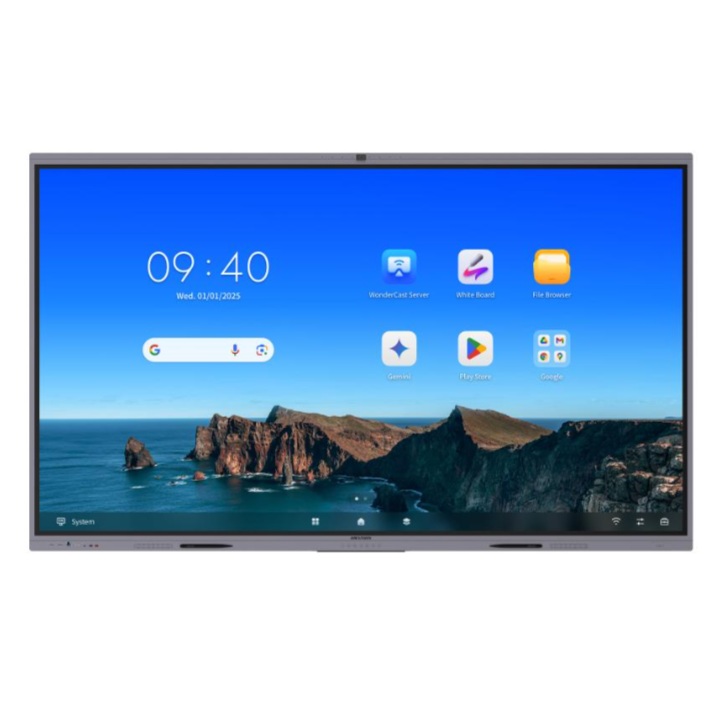

Hikvision DS-D5A86RB/B3 Interactive Display
Description
The Hikvision DS-D5A86RB/B3 Google EDLA Display is Hikvision’s flagship 86-inch interactive flat panel, purpose-built for large classrooms, lecture theatres, executive boardrooms and collaborative workspaces throughout South Africa. Combining a stunning 4K Ultra HD IPS display, Android 14, Google EDLA certification and intelligent AI collaboration features, it provides an all-in-one solution for organisations that demand exceptional performance, seamless communication and intuitive collaboration.
Key Features
- 86-inch 4K Ultra HD (3840 × 2160) display
- Google EDLA Certified with Android 14
- Premium IPS panel with 178° viewing angles
- Up to 50-point infrared multi-touch
- Integrated 48 MP AI camera with 4K video
- 8-array AI microphone system with 12 m voice pickup
- 8 GB RAM and 128 GB internal storage
- Wi-Fi 6, Bluetooth 5.4 and dual Gigabit LAN
- HDMI 2.1, USB-C and OPS expansion support
- Built-in dual 20 W speakers
Google EDLA for Smarter Collaboration
The Hikvision DS-D5A86RB/B3 Google EDLA Display provides certified access to the complete Google Workspace ecosystem, including Google Play, Google Meet, Google Drive, Google Classroom and Google Docs. As a result, educators, presenters and business professionals can securely access their files, applications and cloud-based workflows without relying on external devices.
A Large Display Designed for Maximum Engagement
The expansive 86-inch display ensures that every participant can clearly view presentations, videos and interactive content, even in large rooms. Furthermore, the responsive 50-point infrared touch technology allows multiple users to write, annotate and collaborate simultaneously, encouraging greater participation during lessons, workshops and meetings.
Outstanding 4K Visual Performance
The commercial-grade IPS panel delivers exceptional colour consistency and ultra-wide 178-degree viewing angles, ensuring content remains clear from virtually anywhere in the room. Combined with 4K Ultra HD resolution, anti-glare zero-lamination glass and a 400 cd/m² brightness rating, the display produces crisp text, detailed graphics and vibrant images that remain easy to read throughout the day.
Hikvision DS-D5A86RB/B3 Google EDLA Display Performance
Powered by an advanced octa-core processor together with 8 GB of RAM and 128 GB of storage, the display delivers smooth multitasking, fast application loading and responsive system performance. Android 14 enhances both security and application compatibility, making the display ready for today’s collaboration tools as well as future software updates.
The integrated 48 MP AI camera supports video conferencing in up to 4K resolution and intelligently switches between Android, OPS and connected PC sources. At the same time, the 8-array omnidirectional microphone system uses beamforming, echo cancellation, adaptive noise reduction and automatic gain control to capture voices clearly from up to 12 metres away. Consequently, hybrid meetings and remote learning sessions benefit from professional-quality audio and video without additional conferencing hardware.
Comprehensive Professional Connectivity
Designed for modern collaboration, the Hikvision DS-D5A86RB/B3 includes three HDMI 2.1 inputs, USB 3.0, USB 2.0, USB-C with charging support, dual Gigabit Ethernet ports, Wi-Fi 6, Bluetooth 5.4, TF card expansion and dual touch USB interfaces. Therefore, connecting laptops, document cameras, OPS modules and other peripherals is fast and straightforward while supporting future technology requirements.
Built for Demanding Professional Environments
The anti-glare display uses zero-lamination technology together with a durable 9H hardened glass surface, providing excellent touch accuracy while resisting scratches and everyday wear. The commercial-grade construction is designed for 7 × 16 operation, making it ideal for schools, universities, corporate facilities and training centres that require dependable daily performance.
The Ultimate Interactive Display for Large Spaces
Whether you’re delivering lectures to hundreds of students, hosting executive presentations or facilitating collaborative workshops, the Hikvision DS-D5A86RB/B3 Google EDLA Display delivers a premium interactive experience. Its expansive IPS display, AI-powered conferencing features, Google EDLA certification and enterprise-grade connectivity make it an outstanding choice for organisations seeking a future-ready interactive display solution.
| Display | |
|---|---|
| Diagonal Size | 86″ |
| Display Resolution | 4K UHD (3840 × 2160) @ 60 Hz |
| Backlight Technology | DLED |
| Panel Type | IPS |
| Brightness (Typical) | 400 cd/m² |
| Contrast Ratio | 1200:1 (Static), 15,000:1 (Dynamic) |
| Display Colours | 1.07 Billion |
| Colour Depth | 10-bit (8-bit + FRC) |
| Colour Gamut | 72% NTSC (CIE1931) |
| Pixel Pitch | 0.164 × 0.493 mm |
| Refresh Rate | 60 Hz |
| Response Time | 5 ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Aspect Ratio | 16:9 |
| Display Area | 1895.04 × 1065.96 mm |
| Surface Glass | Anti-Glare Glass |
| Glass Bonding | Zero Lamination |
| Surface Haze | 25% |
| Surface Hardness | 9H (Pencil), Mohs Level 7 |
| Light Transmittance | 88% ±3% |
| Panel Lifespan | 50,000 Hours |
| Recommended Operating Time | 7 × 16 Hours |
| Touch Technology | |
| Touch Technology | Infrared Multi-Touch |
| Touch Points | Up to 50 |
| Touch Resolution | 32768 × 32768 |
| Touch Accuracy | ±0.5 mm (≥90% Touch Area) |
| Minimum Touch Object | ≥1.5 mm (≥90% Touch Area) |
| Touch Response Time | ≤5 ms |
| System | |
| Operating System | Android 14 |
| Processor | Octa-Core (4 × Cortex-A72 @ 2.2 GHz + 4 × Cortex-A53 @ 1.8 GHz) |
| Graphics Processor | Mali-G52 MC3 |
| System Memory (RAM) | 8 GB |
| Internal Storage | 128 GB |
| HDCP Support | Versions 2.3, 2.2 & 1.4 |
| Camera | |
| Built-in Camera | Yes |
| Photo Resolution | 48 MP |
| Video Resolution | 8 MP |
| Maximum Camera Resolution | Up to 4K |
| Field of View | 93.4° Diagonal / 84.5° Horizontal / 54.1° Vertical |
| Lens Distortion | ≤2.5% |
| Camera Features | Automatic switching between Android, OPS and Windows PC |
| Image Processing | 3D Digital Noise Reduction, Face Detection, Automatic White Balance, Automatic Purple Edge Removal, Automatic Defogging & Shadow Correction |
| Microphone | |
| Microphone Array | 8 Omni-directional Microphones |
| Pickup Distance | 12 m |
| Noise Reduction | Echo Reduction & AI Noise Cancellation |
| Audio Processing | Dereverberation, Adaptive Noise Reduction, Adaptive Non-Stationary Noise Reduction, Adaptive Echo Cancellation, Automatic Gain Control (AGC), Automatic Electrical Level Control (AEC), Sound Source Localisation, Digital Beamforming & Speech Detection |
| Sampling Rate | 48 kHz |
| Bit Depth | 16-bit |
| Audio | |
| Speaker System | 2 × 20 W |
| Features | |
| NFC | Built-in Card Reader (13.56 MHz, ISO 14443 Type A/B) |
| Ambient Light Sensor | Yes |
| Connectivity | |
| HDMI 2.1 Inputs | 3 (1 Front, 2 Rear) |
| HDMI Features | HDCP 2.3/2.2/1.4, HDMI 1 supports CEC & ARC |
| 3.5 mm Audio Inputs | 1 (Rear) |
| 3.5 mm Audio Outputs | 1 (Rear) |
| USB 3.0 Ports | 2 (Front) |
| USB 2.0 Ports | 2 (Rear) |
| USB Type-C Ports | 1 (Front, USB 3.0) |
| USB Type-C Power Delivery | 15 W |
| Touch USB Ports | 2 (1 Front, 1 Rear) |
| TF Card Slot | 1 (Rear) |
| Ethernet Ports | 2 × RJ45 Gigabit (1000 Mbps) |
| Wi-Fi | Dual-Band 2.4 GHz / 5 GHz, Wi-Fi 6 (802.11ax) |
| Wi-Fi Modes | Access Point & Station |
| Bluetooth | Bluetooth 5.4 (BLE) |
| RS-232 Ports | 1 (Rear) |
| Power | |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Average Power Consumption | <210 W |
| Standby Power Consumption | ≤0.5 W |
| Physical | |
| Product Dimensions (Without Wall Mount) | 1957.04 × 1173.7 × 95.8 mm |
| Product Dimensions (With Wall Mount) | 1957.04 × 1173.7 × 123.0 mm |
| Package Dimensions (W × H × D) | 2157 × 1345 × 223 mm |
| VESA Mount | 800 × 600 mm (4 × M8 × 25 mm) |
| Net Weight | 52.5 ±0.5 kg |
| Gross Weight | 72.93 ±0.5 kg |
| Included Accessories | Wall Mount Bracket, Hooks, Touch Pen, Remote Control, Power Cable, User Manual & Packing List |
| Environmental | |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10%–90% RH |
